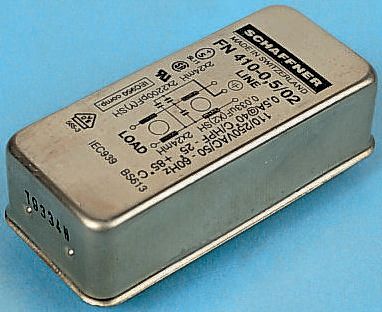

Schaffner FN410 Series 500mA 250 V ac 400Hz RFI Filter, with Pin Terminals, Single Phase [FN 410-0,5/02]; 170-4956
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 500mA |
| Maximum Voltage Rating | 250 V ac |
| Termination Style | Pin |
| Number of Phases | 1 |
| Number of Stages | Two Stage |
| Series | FN410 |
| Operating Frequency | 400Hz |
| Length | 72mm |
| Depth | 33mm |
| Height | 19mm |
| Capacitance | 2.2 nF, 33 nF |
| Inductance | 24 x 2 mH |
| Dimensions | 72 x 33 x 19mm |
| Leakage Current | 373 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
