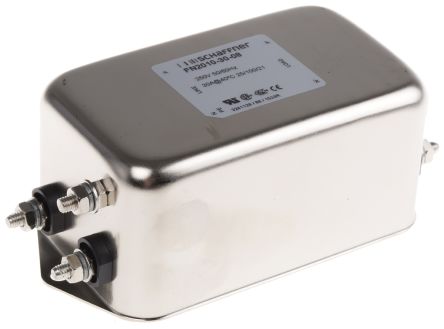

Schaffner FN2010 Series 30A 250 V ac 0 → 400Hz Chassis Mount EMI Filter, with Stud Terminals [FN2010-30-08]; 170-5188
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 30A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Stud |
| Series | FN2010 |
| Number of Stages | Single Stage |
| Operating Frequency | 0 → 400Hz |
| Length | 113.5mm |
| Depth | 57.5mm |
| Height | 45.4mm |
| Capacitance | 10 nF, 470 nF |
| Inductance | 870 μH |
| Dimensions | 113.5 x 57.5 x 45.4mm |
| Leakage Current | 0.87 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
