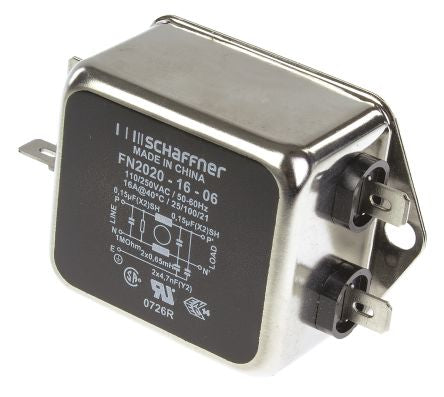

Schaffner FN2020 Series 16A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals [FN2020-16-06]; 170-5003
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 16A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Stages | Single Stage |
| Series | FN2020 |
| Operating Frequency | 400Hz |
| Length | 46.6mm |
| Depth | 71mm |
| Capacitance | 4.7 nF, 150 nF |
| Height | 29.3mm |
| Inductance | 650 μH |
| Dimensions | 46.6 x 71 x 29.3mm |
| Leakage Current | 0.74 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
