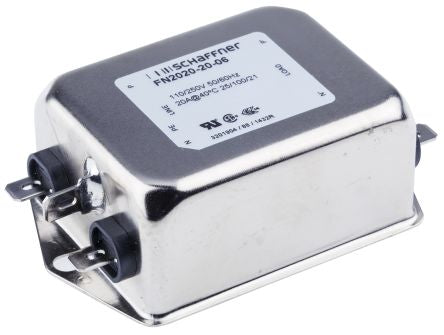

Schaffner FN2020 Series 20A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals [FN2020-20-06]; 170-5106
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Series | FN2020 |
| Number of Stages | Single Stage |
| Operating Frequency | 400Hz |
| Length | 54mm |
| Depth | 85mm |
| Capacitance | 4.7 nF, 150 nF |
| Height | 30.3mm |
| Dimensions | 54 x 85 x 30.3mm |
| Inductance | 600 μH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.74 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
