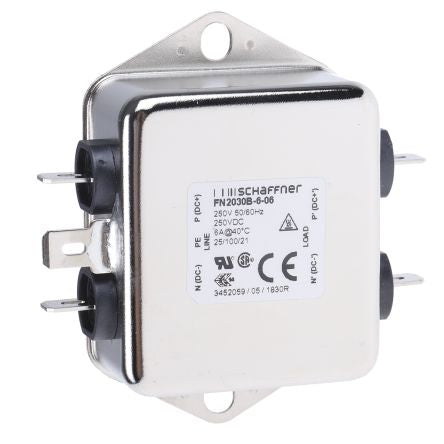

Schaffner FN2030 Series 6A 250 V ac 400Hz Flange Mount RFI Filter, with Tab Terminals [FN2030B-6-06]; 708-4216
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Number of Stages | Single Stage |
| Series | FN2030 |
| Operating Frequency | 400Hz |
| Length | 71mm |
| Depth | 46.6mm |
| Capacitance | 470nF |
| Height | 22.3mm |
| Dimensions | 71 x 46.6 x 22.3mm |
| Inductance | 8 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.002 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 680kΩ |
