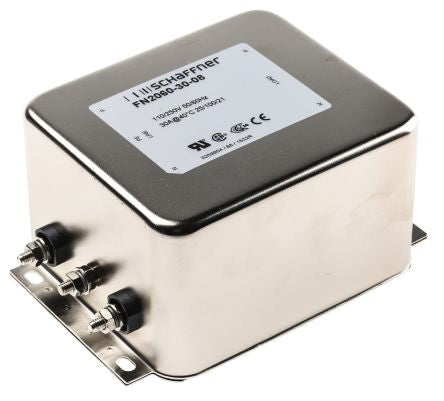

Schaffner FN2060 Series 30A 250 V ac 400Hz Chassis Mount EMI Filter, with Stud Terminals, Single Phase [FN2060-30-08]; 776-1140
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 30A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Stud |
| Number of Phases | 1 |
| Series | FN2060 |
| Number of Stages | Two Stage |
| Operating Frequency | 400Hz |
| Length | 119mm |
| Depth | 57.6mm |
| Capacitance | 1 μF, 10 nF |
| Height | 85.5mm |
| Dimensions | 119 x 57.6 x 85.5mm |
| Inductance | 600 μH |
| Leakage Current | 0.867 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 220kΩ |
