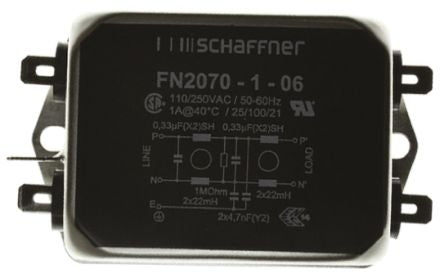

Schaffner FN2070 Series 1A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals [FN2070-1-06]; 170-5010
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 1A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Series | FN2070 |
| Number of Stages | Two Stage |
| Operating Frequency | 400Hz |
| Length | 85mm |
| Depth | 54mm |
| Height | 30.3mm |
| Capacitance | 4.7 nF, 330 nF |
| Dimensions | 85 x 54 x 30.3mm |
| Inductance | 22 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.734 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
