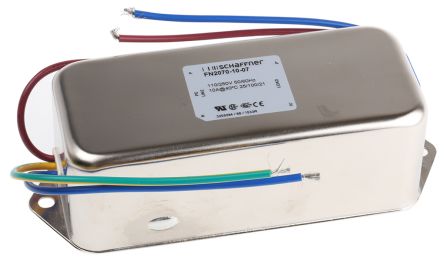

Schaffner FN2070 Series 10A 250 V ac 400Hz Chassis Mount EMI Filter, with Wire Lead Terminals [FN2070-10-07]; 776-1143
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Lead |
| Number of Stages | Two Stage |
| Series | FN2070 |
| Operating Frequency | 400Hz |
| Length | 156mm |
| Depth | 45.4mm |
| Height | 57.5mm |
| Capacitance | 1 μF, 4.7 nF |
| Inductance | 4.5 mH |
| Dimensions | 156 x 45.4 x 57.5mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.734 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 220kΩ |
