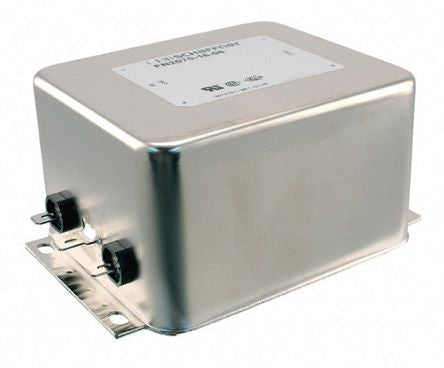

Schaffner FN2070 Series 16A 110 V ac, 250 V ac DC to 400Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase [FN2070-16-06]; 170-5013
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 16A |
| Maximum Voltage Rating | 110 V ac, 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Series | FN2070 |
| Number of Stages | Two Stage |
| Operating Frequency | DC to 400Hz |
| Length | 85.5mm |
| Depth | 119mm |
| Height | 57.6mm |
| Capacitance | 1 μF, 4.7 nF |
| Inductance | 2.8 mH |
| Dimensions | 85.5 x 119 x 57.6mm |
| Leakage Current | 0.734 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 220kΩ |
