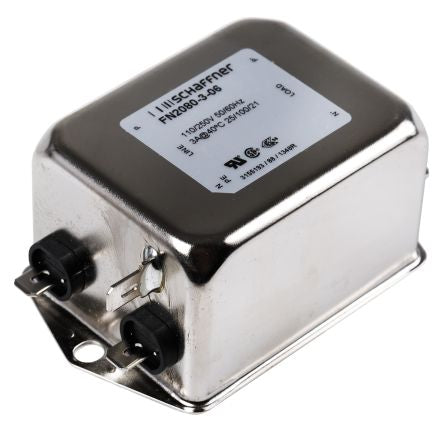

Schaffner FN2080 Series 3A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals [FN2080-3-06]; 170-5014
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Series | FN2080 |
| Number of Stages | Two Stage |
| Operating Frequency | 400Hz |
| Length | 54mm |
| Depth | 85mm |
| Height | 40.3mm |
| Capacitance | 4.7 nF, 470 nF |
| Dimensions | 85 x 40.3 x 54mm |
| Inductance | 9.8 mH, 160 μH |
| Leakage Current | 0.734 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 470kΩ |
