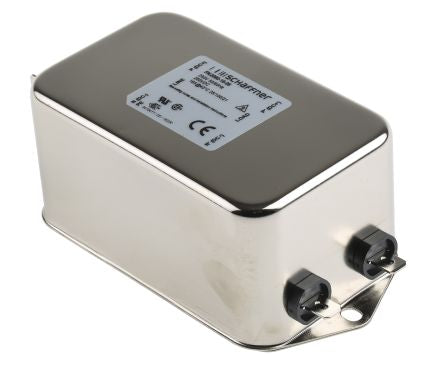

Schaffner FN2090 Series 16A 250 V ac 0 → 400Hz Chassis Mount RFI Filter, with Tab Terminals [FN2090-16-06]; 292-824
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 16A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Stages | Two Stage |
| Series | FN2090 |
| Operating Frequency | 0 → 400Hz |
| Length | 57.5mm |
| Depth | 113.5mm |
| Height | 45.4mm |
| Capacitance | 1 μF, 10 nF |
| Dimensions | 57.5 x 113.5 x 45.4mm |
| Inductance | 4 mH |
| Leakage Current | 1.02 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 220kΩ |
