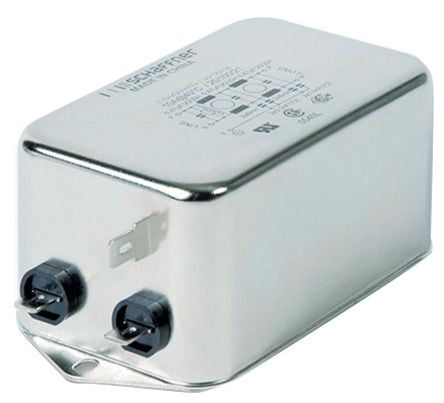

Schaffner FN2090 Series 8A 110 V ac, 250 V ac DC to 400Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase [FN2090-8-06-1]; 881-2309
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 8A |
| Maximum Voltage Rating | 110 V ac, 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Number of Stages | Two Stage |
| Series | FN2090 |
| Operating Frequency | DC to 400Hz |
| Length | 113.5mm |
| Depth | 57.5mm |
| Height | 45.4mm |
| Capacitance | 3.3 nF, 470 nF |
| Inductance | 8 mH |
| Dimensions | 113.5 x 57.5 x 45.4mm |
| Leakage Current | 0.67 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 330kΩ |
