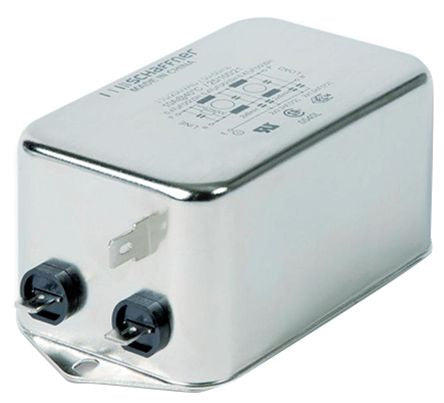

Schaffner FN2090 Series 3A 250 V ac 0 → 400Hz Flange Mount RFI Filter, with Solder Lug Terminals [FN2090Z-3-06]; 708-4285
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Solder Lug |
| Series | FN2090 |
| Number of Stages | Two Stage |
| Operating Frequency | 0 → 400Hz |
| Length | 54mm |
| Depth | 85mm |
| Height | 30.3mm |
| Capacitance | 2.2 nF, 330 nF |
| Dimensions | 54 x 85 x 30.3mm |
| Inductance | 14 mH |
| Leakage Current | 0.5 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 470kΩ |
