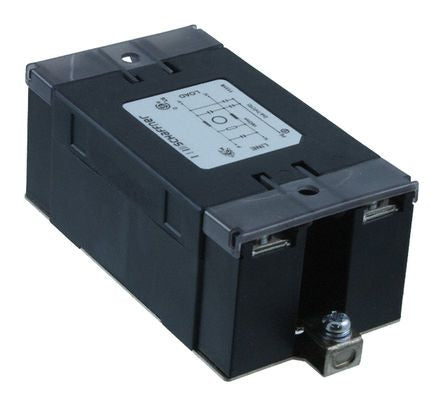

Schaffner FN2450 Series 20A 250 V ac DC → 400Hz Screw Mount EMI Filter, with Screw Terminals, Single Phase [FN2450F-20-61]; 881-2511
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Screw |
| Number of Phases | 1 |
| Series | FN2450 |
| Number of Stages | Single Stage |
| Operating Frequency | DC → 400Hz |
| Length | 103mm |
| Depth | 51mm |
| Capacitance | 3.3 nF, 470 nF |
| Height | 38mm |
| Inductance | 940 μH |
| Dimensions | 103 x 51 x 38mm |
| Leakage Current | 0.52 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Standards Met | CSA 22.2 No. 8, EN 60601-1, EN 60939, UL 1283 |
