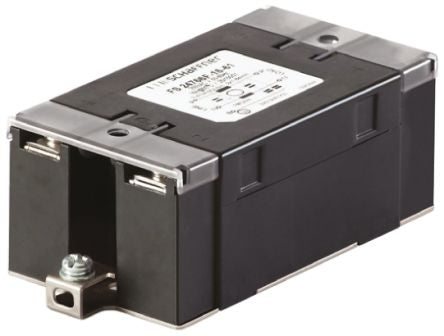

Schaffner FN2450 Series 18.2A 250 V ac 400Hz Panel Mount RFI Filter, with Screw Terminals [FN2450G-16-61]; 170-5147
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 18.2A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Panel Mount |
| Termination Style | Screw |
| Number of Stages | Single Stage |
| Series | FN2450 |
| Operating Frequency | 400Hz |
| Length | 93mm |
| Depth | 51mm |
| Height | 38mm |
| Capacitance | 4.7 nF, 470 nF |
| Inductance | 1.84 mH |
| Dimensions | 93 x 51 x 38mm |
| Leakage Current | 0.73 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Standards Met | CSA 22.2 No. 8, EN 60601-1, EN 60939, UL 1283 |
