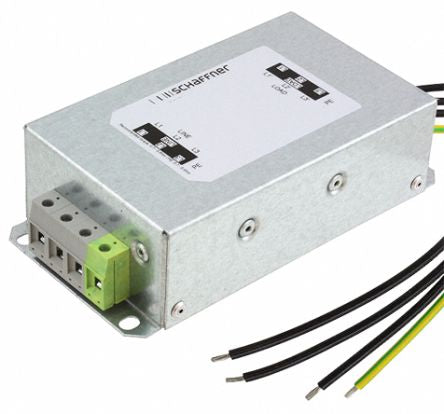

Schaffner FN 251 Series 4A 440 V ac 60Hz Flange Mount RFI Filter, with Wire Lead Terminals 3 Phase [FN251-4-07]; 219-2735
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 4A |
| Maximum Voltage Rating | 440 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Wire Lead |
| Number of Phases | 3 |
| Series | FN 251 |
| Number of Stages | Two Stage |
| Operating Frequency | 60Hz |
| Length | 75mm |
| Depth | 145mm |
| Height | 40mm |
| Capacitance | 1 μF, 15 nF |
| Dimensions | 75 x 145 x 40mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.5 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 470kΩ |
| Power Loss | 5.5W |
