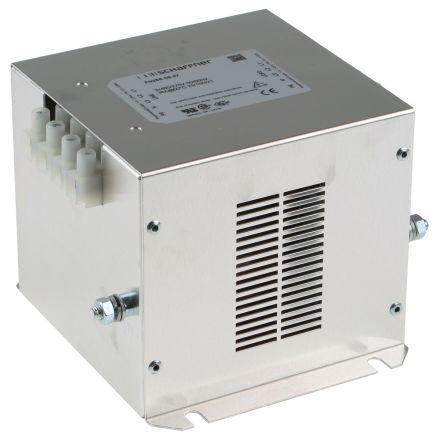

Schaffner FN256 Series 36A 480 V ac 0 → 60Hz Flange Mount RFI Filter, with Screw Terminals [FN256-36-47]; 170-5036
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 36A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Series | FN256 |
| Number of Stages | Single Stage |
| Operating Frequency | 0 → 60Hz |
| Length | 153mm |
| Depth | 166mm |
| Height | 115mm |
| Inductance | 1.1 mH |
| Dimensions | 153 x 166 x 115mm |
| Leakage Current | 3.4 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 680kΩ |
| Power Loss | 14.8W |
