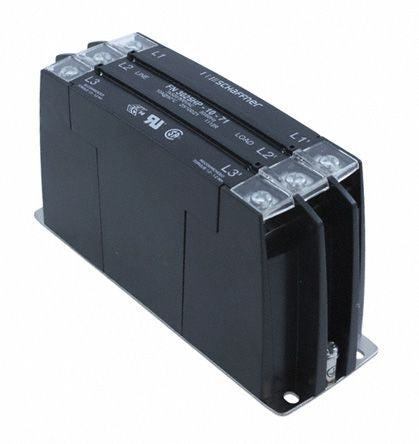

Schaffner FN3025 Series 10A 3 x 520/300 V ac 0 → 60Hz Chassis Mount, DIN Rail EMI Filter, with Screw Terminals [FN3025HP-10-71]; 882-6298
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 3 x 520/300 V ac |
| Mounting Type | Chassis Mount, DIN Rail |
| Termination Style | Screw |
| Number of Phases | 3 |
| Series | FN3025 |
| Number of Stages | Single Stage |
| Operating Frequency | 0 → 60Hz |
| Length | 150mm |
| Depth | 50mm |
| Height | 78mm |
| Dimensions | 150 x 50 x 78mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 2.5 mA |
| Maximum Operating Temperature | +100°C |
| Power Loss | 4.8W |
