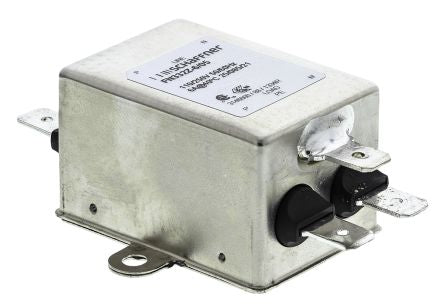

Schaffner FN332 Series 6A 250 V ac 0 → 400Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase [FN332-6-05]; 170-9501
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | FN332 |
| Operating Frequency | 0 → 400Hz |
| Length | 65.6mm |
| Depth | 45mm |
| Capacitance | 2.2 nF, 15 nF |
| Height | 24.8mm |
| Inductance | 800 μH |
| Dimensions | 65.6 x 45 x 24.8mm |
| Leakage Current | 0.34 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
