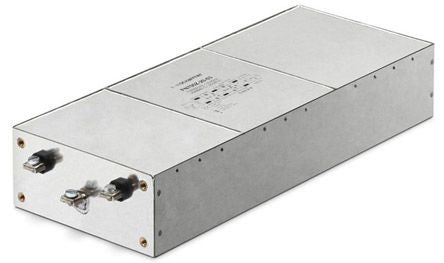

Schaffner FN700 Series 20A 250 V ac DC to 400Hz Chassis Mount EMI Filter, with Screw Terminals, Single Phase [FN700Z-20-03]; 883-8443
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Number of Phases | 1 |
| Series | FN700 |
| Number of Stages | Three Stage |
| Operating Frequency | DC to 400Hz |
| Length | 275mm |
| Depth | 110mm |
| Capacitance | 1 μF, 2.2 μF, 10 μF |
| Height | 50mm |
| Inductance | 5.5 mH, 60 μH |
| Dimensions | 275 x 110 x 50mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 2.6 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 330kΩ |
