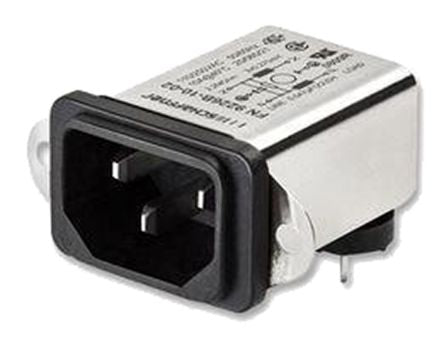

Schaffner FN9226 Series 1A 250 V ac 0 → 400Hz EMI Filter, with PC Pin Terminals, Single Phase [FN9226B-1-02]; 882-8294
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 1A |
| Maximum Voltage Rating | 250 V ac |
| Termination Style | PC Pin |
| Number of Phases | 1 |
| Series | FN9226 |
| Operating Frequency | 0 → 400Hz |
| Length | 48mm |
| Depth | 40.85mm |
| Height | 22.4mm |
| Capacitance | 47nF |
| Inductance | 1.65 mH |
| Dimensions | 48 x 40.85 x 22.4mm |
| Leakage Current | 0.002 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Resistance | 2.2MΩ |
