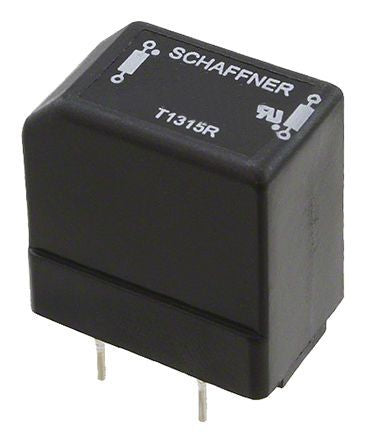

Schaffner 1 (Dual Load) mH, 250 (Dual Load) μH Common Mode Choke, Max SRF:2 (Single Load) MHz, 8 (Dual Load) MHz [RS612-0.5-02]; 883-7784
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1 (Dual Load) mH, 250 (Dual Load) μH |
| Maximum DC Current | 500mA |
| Mounting Type | Radial |
| Maximum DC Resistance | 1.3 (Single Load) Ω, 650 (Dual Load) mΩ |
| Length | 12.5mm |
| Depth | 18mm |
| Height | 20mm |
| Dimensions | 12.5 x 18 x 20mm |
| Maximum Self Resonant Frequency | 2 (Single Load) MHz, 8 (Dual Load) MHz |
| Lead Pitch | 15mm |
| Series | RS |
| Lead Diameter | 0.8mm |
| Terminal Type | Radial Leaded |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
