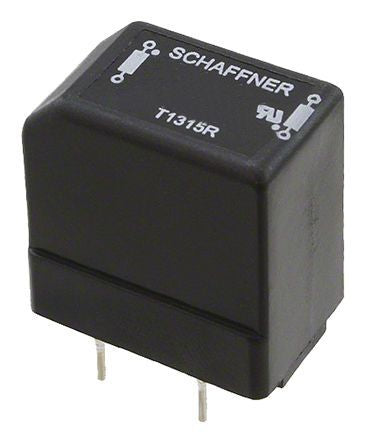

Schaffner 10 (Dual Load) μH, 40 (Dual Load) μH Common Mode Choke, Max SRF:18 (Single Load) MHz, 22 (Dual Load) MHz [RS614-4-02]; 883-7803
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 (Dual Load) μH, 40 (Dual Load) μH |
| Maximum DC Current | 4A |
| Mounting Type | Radial |
| Maximum DC Resistance | 20 (Dual Load) mΩ, 40 (Single Load) mΩ |
| Length | 15.5mm |
| Depth | 23mm |
| Height | 25mm |
| Dimensions | 15.5 x 23 x 25mm |
| Maximum Self Resonant Frequency | 18 (Single Load) MHz, 22 (Dual Load) MHz |
| Lead Pitch | 10mm |
| Series | RS |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Terminal Type | Radial Leaded |
| Lead Diameter | 0.8mm |
