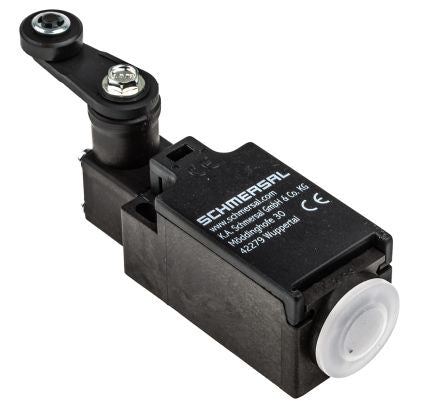

IP67 Slow Action Limit Switch Lever Thermoplastic, NO/NC, 230V [TV1H 236-11z]; 470-4396
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.166666666666667 |
| Housing Material | Thermoplastic |
| Maximum AC Voltage | 230V |
| Maximum DC Voltage | 24V |
| Contact Type | Slow Action |
| Terminal Type | Screw |
| Length | 58.5mm |
| Width | 30mm |
| Mounting Orientation | Axial |
| Minimum Operating Temperature | -30°C |
| Dimensions | 58.5 x 30 x 30 mm |
| Depth | 30mm |
| Maximum Operating Temperature | +80°C |
| Mechanical Life Minimum | 20000000 cycles |
