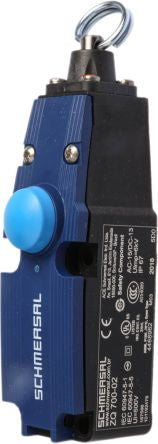

ZQ700 Cable Switch, Straight, 10m, 2NC [ZQ 700-02]; 741-8672
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | ZQ700 |
| Reset Button | Yes |
| Pole Configuration | DP |
| Normal State Configuration | 2NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 10m |
| Maximum Current | 0.166666666666667 |
| Maximum AC Voltage | 230V |
| Maximum DC Voltage | 24V |
| Housing Material | Thermoplastic |
| Number of Cable Entries | 1 |
| Size of Cable Entries | M20 x 1.5 |
| Depth | 50.9mm |
| Length | 160mm |
| Width | 40.5mm |
| E-Stop Button | No |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| IP Rating | IP67 |
| Dimensions | 160 x 40.5 x 50.9 mm |
