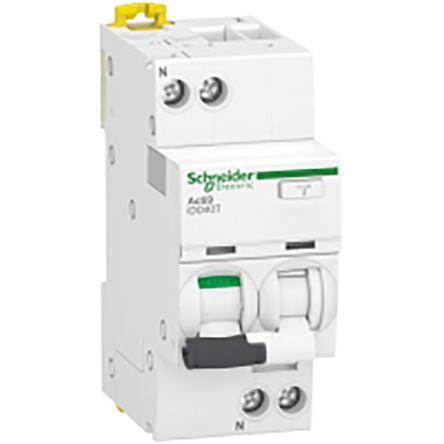

Acti9 iDD40T - Residual current breaker [A9DA6616]; 191-6076
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Poles | 1 + N |
| Current Rating | 16 A |
| Model Number | Acti9iDD40T |
| Trip Sensitivity | 300mA |
| Rated AC Voltage | 230 V |
| Mounting Style | DIN Rail |
| Range | Acti9 |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | Type AC |
| Overall Dimensions | 36 x 73 x 85mm |
| Overall Length | 36mm |
| Tripping Mechanism | Thermal-Magnetic |
| Breaking Capacity | 6 kA, 4500 A |
| Overall Depth | 85mm |
| Terminal Contact Type | Screw |
| Reset Actuator Type | Toggle Switch |
| Overall Width | 73mm |
