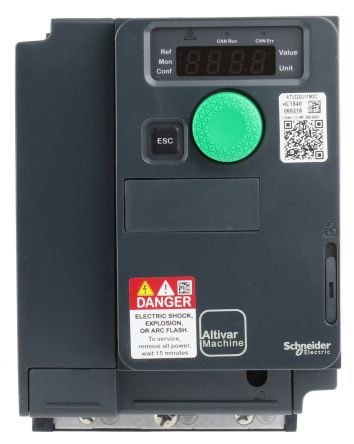

Schneider Electric Variable Speed Drive, 1-Phase In, 0.1 → 599Hz Out 1.1 kW, 230 V ac with EMC Filter [ATV320U11M2C]; 125-3247
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 1.1 kW |
| Phase | 1 |
| Supply Voltage | 230 V ac |
| Current Rating | 13.8 A @ 200 V ac |
| Output Frequency | 0.1 → 599Hz |
| For Use With | Single Phase Asynchronous & Synchronous Motors |
| Ambient Temperature | -10 → +50 (without Derating) °C, +50 → +60 (with Derating) °C |
| Overall Width | 158mm |
| Overall Length | 105mm |
| Overall Depth | 142mm |
| Control Panel | Yes |
| Drive Type | Adjustable Frequency |
| Field Bus Communication Type | Profibus |
| Filter Included | Yes |
| Special Features | Enhanced Automation Capabilities, Even at Low Speed & Dynamic Accuracy for Start/Stop Application, Open-Loop Motor Control Combined, Variable Speed Drive Improves Machine Effectiveness |
| Mounting Type | DIN Rail |
| IP Rating | IP20 |
| Function | Motor Control |
| Standards Met | CE, CSA, CUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, NOM 117, RCM, UL |
| Series | ATV320 |
