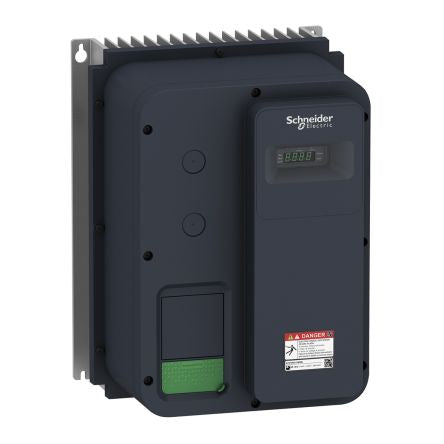

Frequenzumrichter ATV320, 1,1kW, 200V, 1 [ATV320U11M2W]; 186-0892
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 1.1 kW |
| Phase | 1 |
| Supply Voltage | 200 → 240 V |
| Current Rating | 13.8 A |
| Output Frequency | 0.1 → 599Hz |
| For Use With | Altivar Machine ATV320 |
| Ambient Temperature | -10 → +40 (Without Derating) °C, +40 → +60 (With Derating) °C |
| Overall Width | 235mm |
| Overall Length | 250mm |
| Overall Depth | 340mm |
| Drive Type | Variable Speed |
| Field Bus Communication Type | CANopen, Modbus |
| Filter Included | Yes |
| Mounting Type | Wall Mount |
| Interface | Ethernet |
| Special Features | Extended Frequency Range for High Speed Motors |
| Series | ATV320 |
| Standards Met | C-Tick Certified, CSA Certified, EN/IEC 61800-3, EN/IEC 61800-5-1, GOST Certified, IEC 13849-1, IEC 60721-3, IEC 61508, NOM Certified, REACH Certified, UL 61800-5-1, UL Listed |
| Function | Motor Control, Open Loop Speed Control |
| IP Rating | IP66 |
