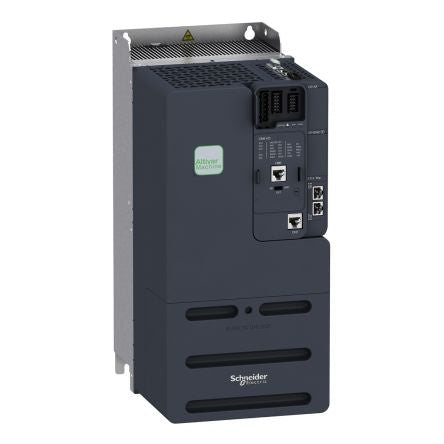

Schneider Electric Inverter Drive, 3-Phase In, 0.1 → 599Hz Out 22 kW, 380 → 480 V with EMC Filter ATV340 [ATV340D22N4E]; 181-4517
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 22 kW |
| Phase | 3 |
| Supply Voltage | 380 → 480 V |
| Current Rating | 34.9 A @ 480 V (With External Line Choke Heavy Duty), 43.3 A @ 380 V (With External Line Choke Normal Duty), 48.6 A @ 480 V (With External Line Choke Normal Duty), 50.5 A @ 480 V (Without Line Choke Heavy Duty), 60.1 A @ 380 V (With External Line Choke Heavy Duty), 63.5 A @ 380 V (Without Line Choke Heavy Duty) |
| Output Frequency | 0.1 → 599Hz |
| For Use With | High Performance Machines |
| Ambient Temperature | 0 → +40 (Without Current Derating Normal Duty) °C, 0 → +50 (Without Current Derating Heavy Duty) °C, +40 → +60 (With Current Derating Normal Duty) °C, +50 → +60 (With Current Derating Heavy Duty) °C |
| Overall Width | 249mm |
| Overall Length | 180mm |
| Overall Depth | 385mm |
| Control Panel | Yes |
| Drive Type | Variable Speed |
| Field Bus Communication Type | Ethernet |
| Filter Included | Yes |
| IP Rating | IP20 |
| Mounting Type | Cabinet Mount |
| Series | ATV340 |
| Interface | Ethernet |
