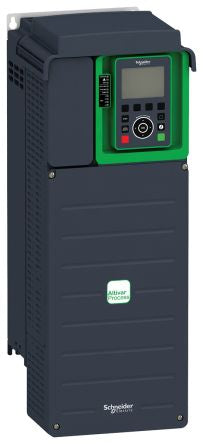

Schneider Electric Inverter Drive, 3-Phase In, 0.1 → 500Hz Out 15 kW, 400 V with EMC Filter ALTIVAR 630, IP21 [ATV630D15N4]; 872-4054
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 15 kW |
| Phase | 3 |
| Supply Voltage | 400 V |
| Current Rating | 23.5 (Heavy Duty) A, 31.7 (Normal Duty) A |
| Output Frequency | 0.1 → 500Hz |
| For Use With | Asynchronous Motors, Synchronous Motors |
| Ambient Temperature | -15 → +60°C |
| Overall Width | 546mm |
| Overall Length | 211mm |
| Overall Depth | 232mm |
| Control Panel | Yes |
| Drive Type | Adjustable Frequency |
| Field Bus Communication Type | Profibus |
| Filter Included | Yes |
| Standards Met | EN/IEC 61800-3, EN/IEC 61800-3 Environment 1 Category C2, EN/IEC 61800-3 Environment 2 Category C3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, UL508C |
| IP Rating | IP21 |
| Function | Control Unit |
| Special Features | Dynamic Predictive Maintenance, Energy Management (Integrated Power Measurement), Ethernet Port With Embedded Web Server, Simplified Communication, 3 Qr Codes |
| Mounting Type | Panel Mount |
| Series | ALTIVAR 630 |
