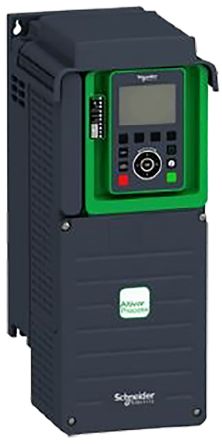

Schneider Electric Variable Speed Drive, 3-Phase In, 0.1 → 500Hz Out 5.5 kW, 230 V ac with EMC Filter [ATV630U55M3]; 125-3275
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 5.5 kW |
| Phase | 3 |
| Supply Voltage | 230 V ac |
| Current Rating | 20.2 A @ 200 V ac |
| Output Frequency | 0.1 → 500Hz |
| For Use With | Three Phase Asynchronous & Synchronous Motors |
| Ambient Temperature | -15 → +50 (without Derating) °C, Maximum of +60 (with Derating) °C |
| Overall Width | 233mm |
| Overall Length | 171mm |
| Overall Depth | 409mm |
| Control Panel | Yes |
| Drive Type | Adjustable Frequency |
| Field Bus Communication Type | Profibus |
| Filter Included | Yes |
| IP Rating | IP21 |
| Mounting Type | Wall Mount |
| Function | Motor Control |
| Special Features | Embedded Power Measurement & Energy Dashboard, Energy Saving, Fluids Management Processing, Services Oriented Drive |
| Standards Met | ATEX, CE, CSA, CUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, TUV, UL 508C |
| Series | ATV63 |
