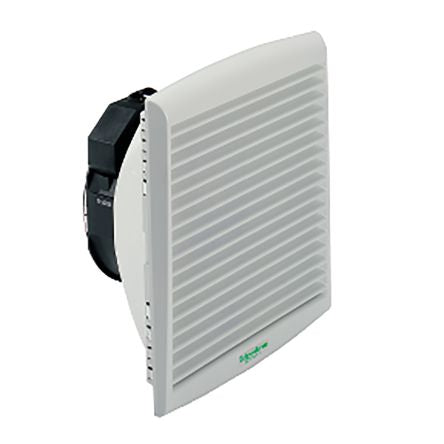

Filter Fan, 248 x 268mm, 300 m³/h @ 50 Hz, 350 m³/h @ 60 Hz, 145 → 253 V, IP54 [NSYCVF300M230PF]; 177-9012
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Noise Level | 55 → 56dB |
| Filtered Air Flow | 300 m³/h @ 50 Hz, 350 m³/h @ 60 Hz |
| Input Current | 0.16 A @ 60 Hz, 0.17 A @ 50 Hz |
| Input Power Rating | 36 W @ 50 Hz, 37 W @ 60 Hz |
| AC or DC Operation | AC |
| Face Dimensions | 248 x 268mm |
| Installation Depth | 116mm |
| Supply Voltage | 145 → 253 V |
| Face Height | 268mm |
| Face Width | 248mm |
| Bearing Type | Ball |
| Series | ClimaSys CV |
| IP Rating | IP54 |
| Termination Type | Faston Connector |
| Special Features | Protective Grille on the Front and Rear Surfaces |
