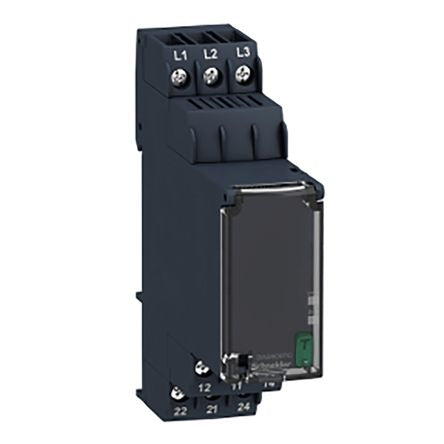

Schneider Electric Phase Monitoring Relay With DPDT Contacts, 3 Phase, 208 → 480 V ac [RM22TG20]; 179-9433
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase |
| Supply Voltage | 208 → 480 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | <100 V ac |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Current Range | 8 (AC) A, 10 (DC) mA |
| Length | 22.9mm |
| Width | 79.5mm |
| Minimum Voltage Sensed | 183 V ac |
| Operating Temperature Range | -20 → +50 (60 Hz) °C, -20 → +60 (50 Hz) °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Maximum Voltage Sensed | 528V ac |
| Height | 90mm |
| Dimensions | 22.9 x 79.5 x 90 mm |
| Maximum Operating Temperature | +50 (60 Hz) °C, +60 (50 Hz) °C |
| Series | Zelio Control |
| Minimum Operating Temperature | -20°C |
