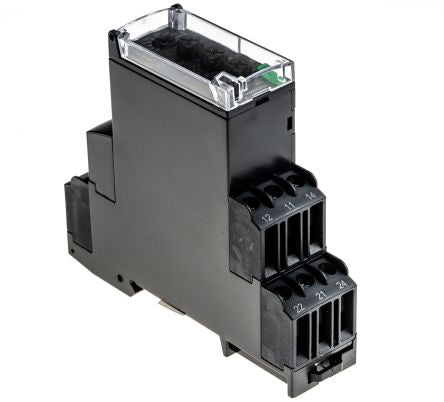

Schneider Electric Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 304 → 576 V ac [RM22TR33]; 124-0184
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 304 → 576 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | 380 → 480 V ac |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 0.1 → 30 s |
| Frequency Sensing Range | 50 → 60 Hz |
| Current Range | 10 mA at 5 V DC → 8 A AC |
| Minimum Operating Temperature | -20°C |
| Minimum Voltage Sensed | 380 V ac |
| Number of Poles | 2 |
| Dimensions | 22.9 x 79.5 x 90 mm |
| Terminal Type | Screw |
| Standards Met | CCC, CE, CISPR 11, CISPR 22, CSA, EAC, EN/IEC 60255-1, EN/IEC 60715, GL, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60529, IEC 60664-1, IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 6100, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5 |
| Maximum Operating Temperature | +60°C |
| Mounting Type | DIN Rail |
| Height | 90mm |
| Length | 22.9mm |
| Series | RM22TR |
| Width | 79.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Maximum Voltage Sensed | 480V ac |
