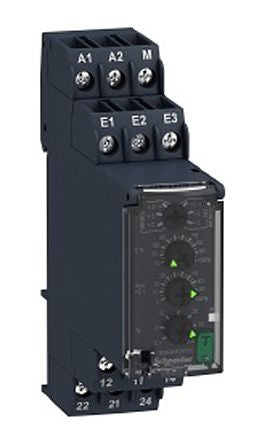

Schneider Electric Voltage Monitoring Relay With DPDT Contacts, 1 Phase, 60 → 280 V ac [RM22UB34]; 124-0190
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 60 → 280 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 1 |
| Voltage Sensing Range | 80 → 300 V ac/dc |
| Time Delay | 0.1 → 30 s |
| Height | 90mm |
| Maximum Operating Temperature | +60°C |
| Series | RM22UA |
| Mounting Type | DIN Rail |
| Maximum Voltage Sensed | 300V ac/dc |
| Dimensions | 22.9 x 79.5 x 90 mm |
| Length | 22.9mm |
| Number of Poles | 2 |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
| Width | 79.5mm |
| Minimum Voltage Sensed | 80 V ac/dc |
| Minimum Operating Temperature | -20°C |
