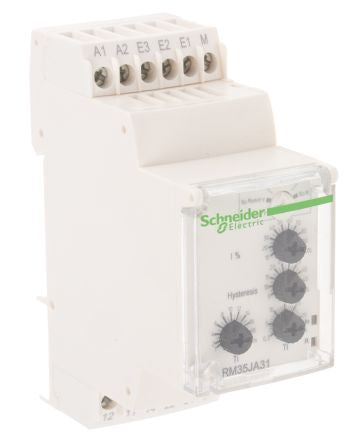

Schneider Electric Current Monitoring Relay With DPDT Contacts, 24 → 240 V ac/dc [RM35JA31MW]; 146-200
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | DPDT |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 2mA |
| Maximum Current Sensed | 500mA |
| Time Delay | 0.3 → 30 s |
| Current Range | 2 → 500 mA |
| Operating Temperature Range | -20 → +50 °C |
| Width | 35mm |
| Length | 72mm |
| Dimensions | 72 x 35 x 90 mm |
| Height | 90mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
