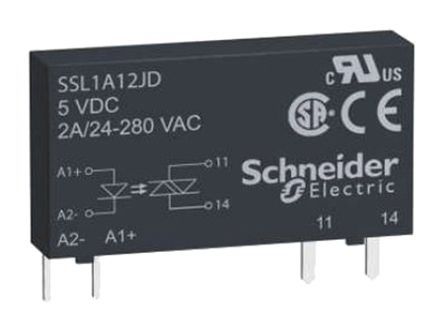

Schneider Electric 2 A SPNO Solid State Relay, AC Switching, PCB Mount, SCR, 280 V ac Maximum Load [SSL1A12JD]; 922-1827
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.07 A |
| Maximum Load Current | 0.0833333333333333 |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 12 V dc |
| Switching Type | AC |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | SCR |
| Maximum Turn On Time | 1/2 cycles |
| Dimensions | 28 x 5 x 15mm |
| Control Voltage Range | 3 → 12 V dc |
| Special Features | Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals |
| Standards Met | CE, CSA, UL |
| Number of Poles | 1 |
| Relay Type | Single Phase |
| Load Voltage Range | 24 → 280V ac |
| Depth | 5mm |
| Capacitance | 1.5pF |
| Height | 15mm |
| Off State Leakage Current | 4 mA |
| Length | 28mm |
| Operating Temperature Range | -20 → +80°C |
