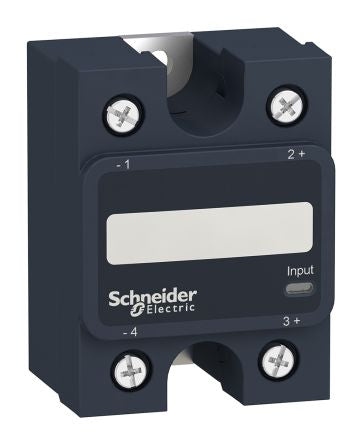

Schneider Electric 90 A SPNO Solid State Relay, Zero Voltage, Panel Mount, SCR, 660 V ac Maximum Load [SSP1A490M7T]; 904-5756
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A |
| Maximum Load Current | 90 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 660 V ac |
| Minimum Control Voltage | 90 V ac |
| Maximum Control Voltage | 280 V ac |
| Switching Type | Zero Voltage |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Output Device | SCR |
| Maximum Turn On Time | 25 ms |
| Dimensions | 44.45 x 34.29 x 58.89mm |
| Length | 44.45mm |
| Capacitance | 8pF |
| Control Voltage Range | 90 → 280 V ac |
| Operating Temperature Range | -40 → +80°C |
| Relay Type | Solid State Relay |
| Standards Met | CE, CSA, EAC, EN/IEC, REACH, UL |
| Special Features | Green LED for Input Visualization |
| Off State Leakage Current | <= 1 mA |
| Height | 58.89mm |
| Number of Poles | 1 |
| Depth | 34.29mm |
| Load Voltage Range | 48 → 660V ac |
