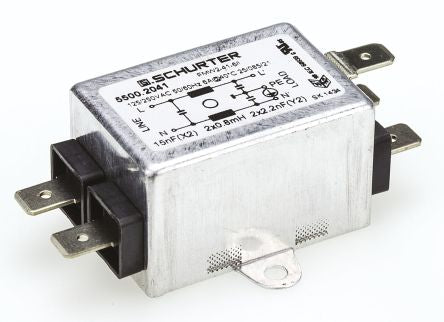

Schurter FMW2 Series 6A 250 V ac 60Hz Panel Mount RFI Filter, with Solder Tab Terminals [5500.2041]; 110-6828
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Panel Mount |
| Termination Style | Solder Tab |
| Series | FMW2 |
| Number of Stages | Single Stage |
| Operating Frequency | 60Hz |
| Length | 29mm |
| Depth | 42mm |
| Capacitance | 2.2 nF, 15 nF |
| Height | 25mm |
| Dimensions | 29 x 42 x 25mm |
| Inductance | 0.8 x 2 mH |
| Leakage Current | 0.25 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
