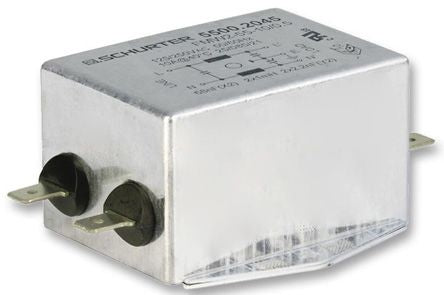

Schurter FMW-55 Series 20A 250 V ac 50 → 60Hz Screw Mount RFI Filter, with Tab Terminals [5500.2047]; 782-4020
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Tab |
| Series | FMW-55 |
| Number of Stages | Single Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 81mm |
| Depth | 57mm |
| Capacitance | 2.2 nF, 68 nF |
| Height | 33mm |
| Dimensions | 81 x 57 x 33mm |
| Inductance | 0.1 x 25 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 2.1 mA |
| Maximum Operating Temperature | +100°C |
| Standards Met | UL 1283 |
