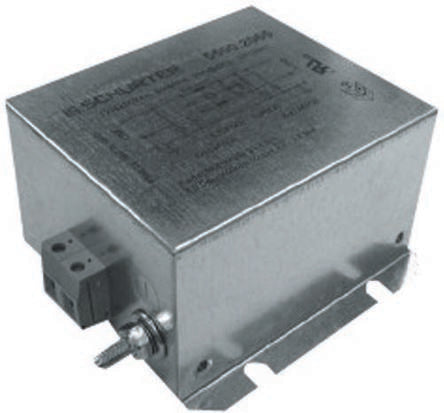

Schurter FMAB Series 20A 250 V ac 60Hz Flange Mount RFI Filter, with Screw Terminals [5500.2065]; 493-3083
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Series | FMAB |
| Number of Stages | Single Stage |
| Operating Frequency | 60Hz |
| Length | 137mm |
| Depth | 106mm |
| Capacitance | 1 nF, 2.2 nF, 10 nF |
| Height | 58mm |
| Inductance | 3.5 x 2 mH |
| Dimensions | 137 x 106 x 58mm |
| Leakage Current | 5.2 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
