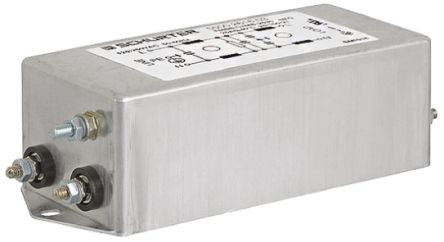

Schurter FMBB NEO Series 1A 250 V ac 50 → 60Hz Screw Mount RFI Filter, with Tab Terminals [5500.2600.01]; 782-4099
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 1A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Tab |
| Series | FMBB NEO |
| Number of Stages | Two Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 77mm |
| Depth | 46mm |
| Height | 31mm |
| Capacitance | 4.7 nF, 220 nF |
| Dimensions | 77 x 46 x 31mm |
| Inductance | 12 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | < 0.5 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 945mΩ |
| Power Loss | 1.9W |
| Standards Met | UL 1283 |
