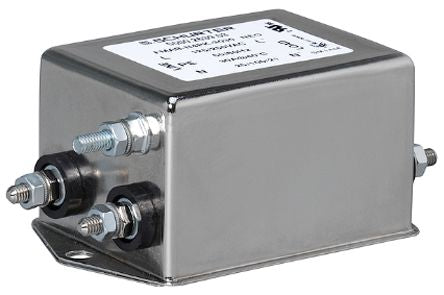

Schurter FMAB NEO Series 30A 125 (UL/CSA) V ac, 250 (IEC) V ac, 250 (UL/CSA) V ac 50 (IEC) Hz, 60 (UL/CSA) Hz [5500.2657.03]; 127-1757
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 30A |
| Maximum Voltage Rating | 125 (UL/CSA) V ac, 250 (IEC) V ac, 250 (UL/CSA) V ac |
| Mounting Type | Flange Mount |
| Termination Style | Quick Connect |
| Number of Phases | 1 |
| Series | FMAB NEO |
| Number of Stages | Single Stage |
| Operating Frequency | 50 (IEC) Hz, 60 (UL/CSA) Hz |
| Length | 114mm |
| Depth | 58mm |
| Height | 46mm |
| Dimensions | 114 x 58 x 46mm |
| Minimum Operating Temperature | -40°C |
| Leakage Current | 1 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 1mΩ |
| Power Loss | 1.8W |
