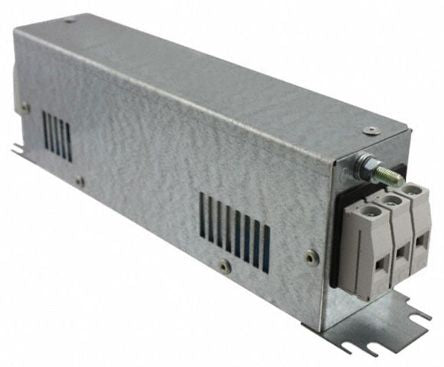

Schurter FMAC ECO Series 64A 480 V ac 60Hz Flange Mount RFI Filter, with Screw Terminals [FMAC-091E-6410]; 708-5689
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 64A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Series | FMAC ECO |
| Number of Stages | Single Stage |
| Operating Frequency | 60Hz |
| Length | 141mm |
| Depth | 265mm |
| Height | 58mm |
| Capacitance | 3.3 μF, 4.7 μF |
| Dimensions | 141 x 265 x 58mm |
| Inductance | 550 μH |
| Leakage Current | 10.2 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1.4mΩ |
| Power Loss | 17W |
