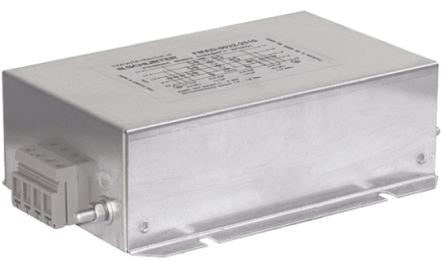

Schurter FMAD Series 25A 480 V ac 50 → 60Hz Screw Mount RFI Filter, with Screw Terminals [FMAD-0932-2510]; 782-4165
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 25A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Screw |
| Series | FMAD |
| Number of Stages | Single Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 237mm |
| Depth | 151mm |
| Height | 66mm |
| Capacitance | 1 μF, 4.4 μF |
| Inductance | 2.6 mH |
| Dimensions | 237 x 151 x 66mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | < 5 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 15mΩ |
| Power Loss | 15.4W |
