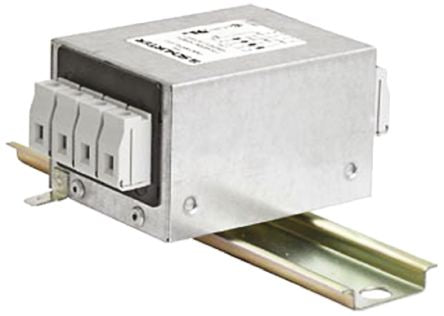

Schurter FMAC RAIL Series 10A 480 V ac 50 → 60Hz DIN Rail RFI Filter, with Screw Terminals [FMAD-MRYB-1010]; 782-4184
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | DIN Rail |
| Termination Style | Screw |
| Number of Stages | Single Stage |
| Series | FMAC RAIL |
| Operating Frequency | 50 → 60Hz |
| Length | 102mm |
| Depth | 61mm |
| Height | 48mm |
| Capacitance | 4.7 nF, 100 nF |
| Dimensions | 102 x 61 x 48mm |
| Inductance | 400 μH |
| Leakage Current | <0.5 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 8mΩ |
| Power Loss | 0.02W |
