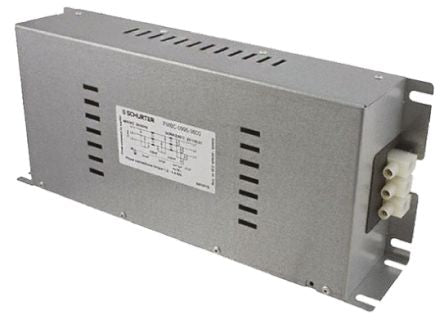

Schurter FMBC ECO Series 50A 480 V ac 50 → 60Hz Screw Mount RFI Filter, with Screw Terminals [FMBC-0995-5000]; 782-4213
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 50A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Screw |
| Series | FMBC ECO |
| Number of Stages | Two Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 340mm |
| Depth | 135mm |
| Capacitance | 1 μF, 47 nF |
| Height | 65mm |
| Dimensions | 340 x 135 x 65mm |
| Inductance | 450 μH |
| Leakage Current | 7.5 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 7.5mΩ |
| Power Loss | 20W |
