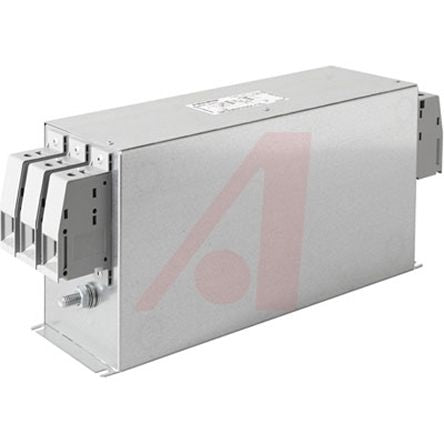

Schurter FMBC NEO Series 100A 520 V ac 50 → 60Hz Chassis Mount RFI Filter, with Screw Terminals 3 Phase [FMBC-A91G-J012]; 870-3502
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 100A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Series | FMBC NEO |
| Number of Stages | Two Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 330mm |
| Depth | 90mm |
| Capacitance | 3.3 μF, 9.9 μF |
| Height | 150mm |
| Inductance | 1.2 mH, 13 μH |
| Dimensions | 330 x 90 x 150 |
| Minimum Operating Temperature | -25°C |
| Leakage Current | > 33 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 800µΩ |
| Power Loss | 24W |
| Standards Met | UL 1283 |
