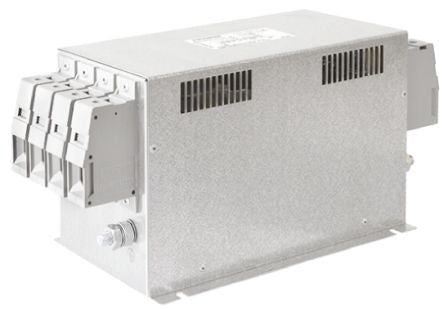

Schurter FMBD NEO Series 25A 520 V ac 50 → 60Hz Screw Mount RFI Filter, with Screw Terminals [FMBD-B92B-2512]; 782-4263
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 25A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Screw |
| Series | FMBD NEO |
| Number of Stages | Two Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 165mm |
| Depth | 155mm |
| Height | 115mm |
| Capacitance | 4.7µF |
| Inductance | 1.6 mH, 12 μH |
| Dimensions | 165 x 155 x 115mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 12.7 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 3.8mΩ |
| Power Loss | 9.2W |
