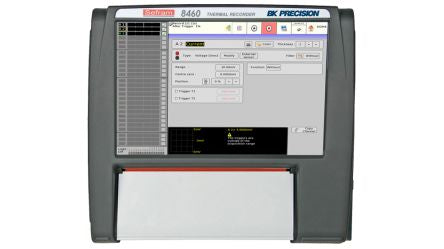

Sefram 8460/020 Data Acquisition System, 12 Channel(s), Ethernet, USB, 1Msps, 14 bits [8460/020]; 232-0439

The Sefram 8460 is a High-Speed Thermal Paper Data Acquisition Solution with 270 mm paper that enables you to acquire multiple parameters: Voltage, Current (with shunt or Clamp), Temperature (thermocouples), measurements on sensors (e.g. 0-10V

4-20 mA), etc.. You can set up your own channel configuration from the 4 input boards available: 6ch Universal Board, 6ch Universal High Voltage board, 6ch Strain Gauge board and 12ch Multiplexed boards. With suitable channel configuration you can record from 6 up to 36 channels and 16 logical inputs. Long term measurements with a sampling rate of 1MHz are possible by taking full advantage of the 500GB internal hard disk memory. With a special integrated function of Power Analysis you can record all your parameters on a Single-Phase and Three-Phase network (50Hz, 400Hz and 1kHz). This Data Acquisition Solution can be remotely controlled by USB, Ethernet or WiFi connection and the results can analysed on license-free software from Sefram.

Sefram 8460 combines autonomy, power and simplicity to provide you the right answer for your recording needs.

Common features:

Interfaces : 4 x USB, Ethernet, VGA

Various measurement functions

Remote control

Supplied with licence free Sefram Viewer software for data transfer and analysis

Safety: 600V CAT III (depending of boards)

6 isolated input universal board:

6 isolated analogue channels

14 bit, 1 Ms/s, Bandwidth: 100kHz

DC, RMS AC+DC Voltage (+-500V)

Frequency, Thermocouples

6 isolated high voltage board:

6 isolated high voltage analogue channels

14 bit, 1 Ms/s, Bandwidth: 26kHz

DC, RMS AC+DC Voltage (+-1000V)

Frequency

6 isolated differential input board - Strain Gauge

Measurement of strain gauge bridges (4 and 6 wires) and half-bridge

Voltage up to 50V, thermocouples

16 bit, 100ks/s, bandwidth 18kHz

12 channels multiplexed board

Voltage up to 50V AC, DC

Pt100, thermocouples

16 bit, 5ks/s, bandwidth 1kHz

TFT panoramic LCD touch screen (15"4)

6 to 36 analogue channels

Up to 3 measurement boards

16 logical channels

270mm thermal paper printer

128 Mword memory, with segments

Internal hard disk : 500 Gb

Intuitive man-machine interface

Power Analysis function

Options:

IRIG board

WiFi interface

Options

2320470 - Multiplexed card 12 channels

2320468 - Universal input card 6 channels

2320459 - High Voltage Universal input card 6 channels

2320471 - Strain Gauge Card 6 channels

2320453 - WiFi option

7918071 - External 16 isolated logical channel adapter

1259523 - Special cord for logic inputs (banana)

2320474 - 19" rack mounting kit

Factory Options (must be ordered with the main unit)

2320472 - GPS card option - internal clock synchronization with an GPS time (only possible GPS or IRIG)

2320473 - IRIG card option - internal clock synchronization with an IRIG time (only possible IRIG or GPS)

2320469 - High Impedance option Z = 10Mohm. One needed for each input board

2320466 - 2 TB Hard drive option

Supplied with

Included: main adaptor 100/240V, manual (CD-ROM), set of red and black cables, aligator clips, quick banana plug
